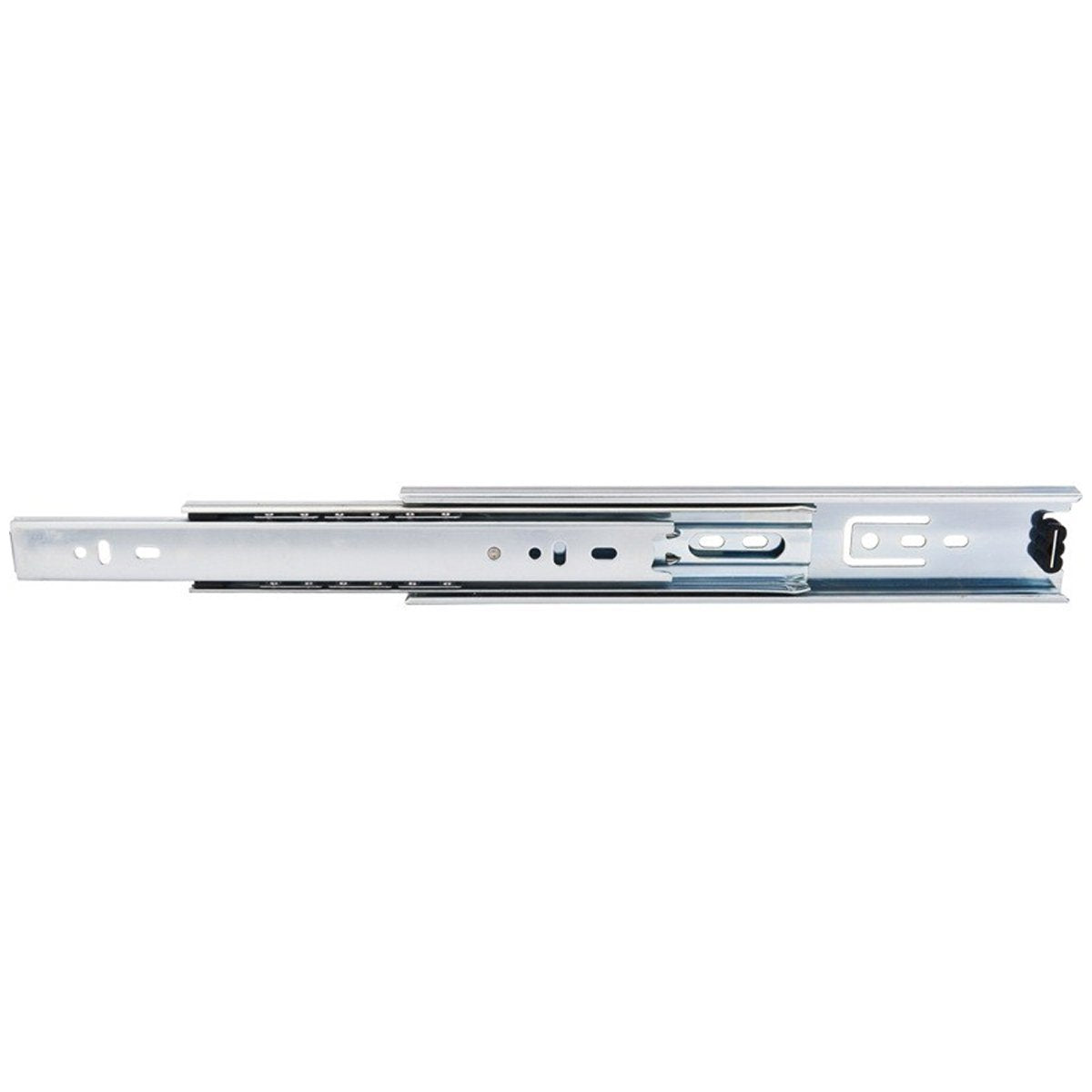

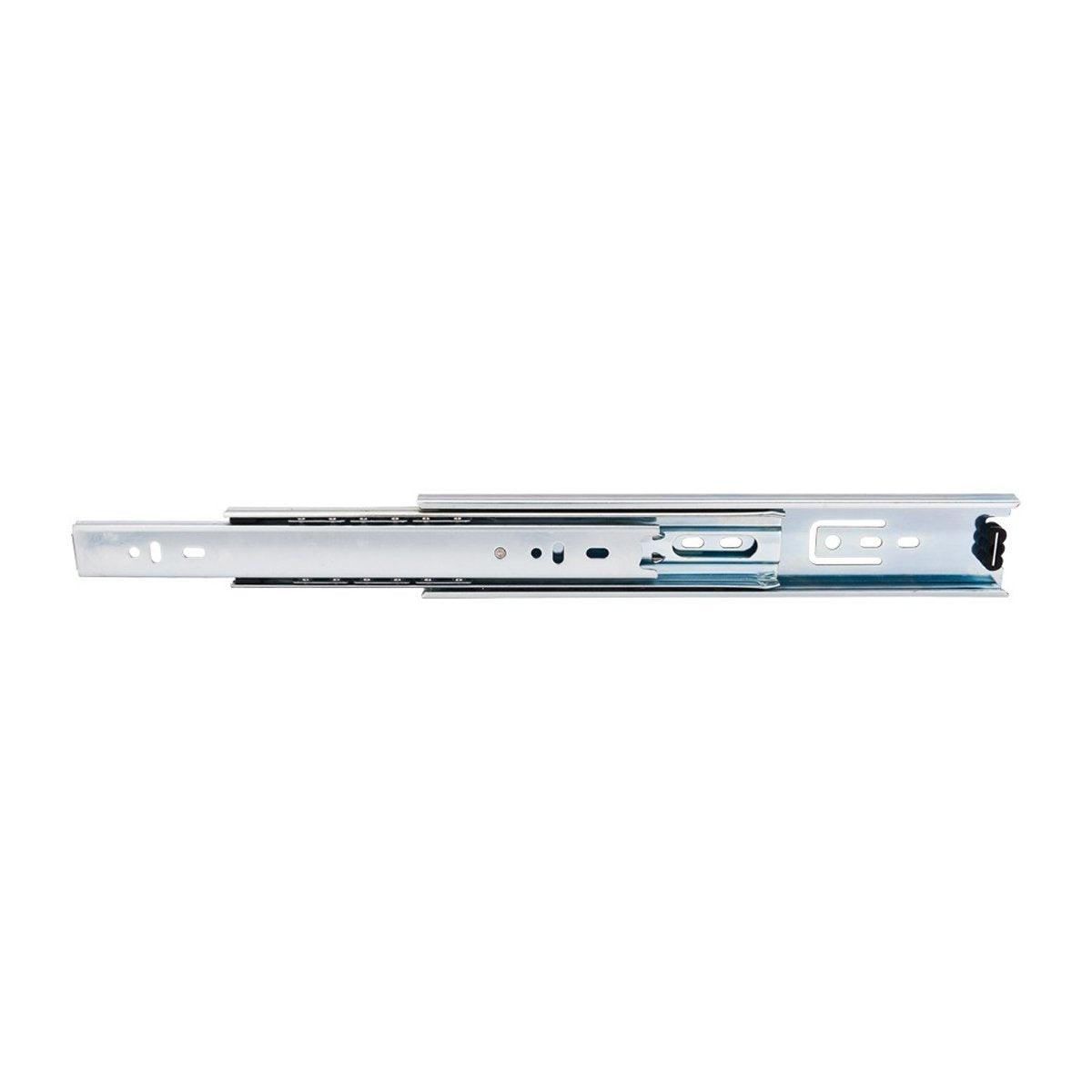

Hardware Resources Heavy Duty 100 lb Full Extension Ball Bearing Drawer Slide
Hardware Resources Heavy Duty 100 lb Full Extension Ball Bearing Drawer Slide
Hardware Resources
SKU:303FU10
Couldn't load pickup availability
Hardware Resources' best selling slide series has been the go-to 100 lb ball bearing slide for cabinet makers for over a decade. This dependable, worry-free slide is a great solution to almost any application.
- Details
- Specifications & Warranty
- Shipping & Returns
- Resources
- Shop Related
Benefits & Features:
- Full extension slide
- Grade 1 ANSI/BHMA certified
- 100 lb dynamic weight rating
- Lubricated steel ball bearings with cage hold forward - retains cage during drawer member installation
- Non-handed trigger disconnect release
- Synthetic rubber hold-in detent prevents bounce-back and roll out
- 45 mm profile height
- 1/2" side spacing
- 1.0 mm x 1.0 mm x 1.2 mm cold rolled steel material

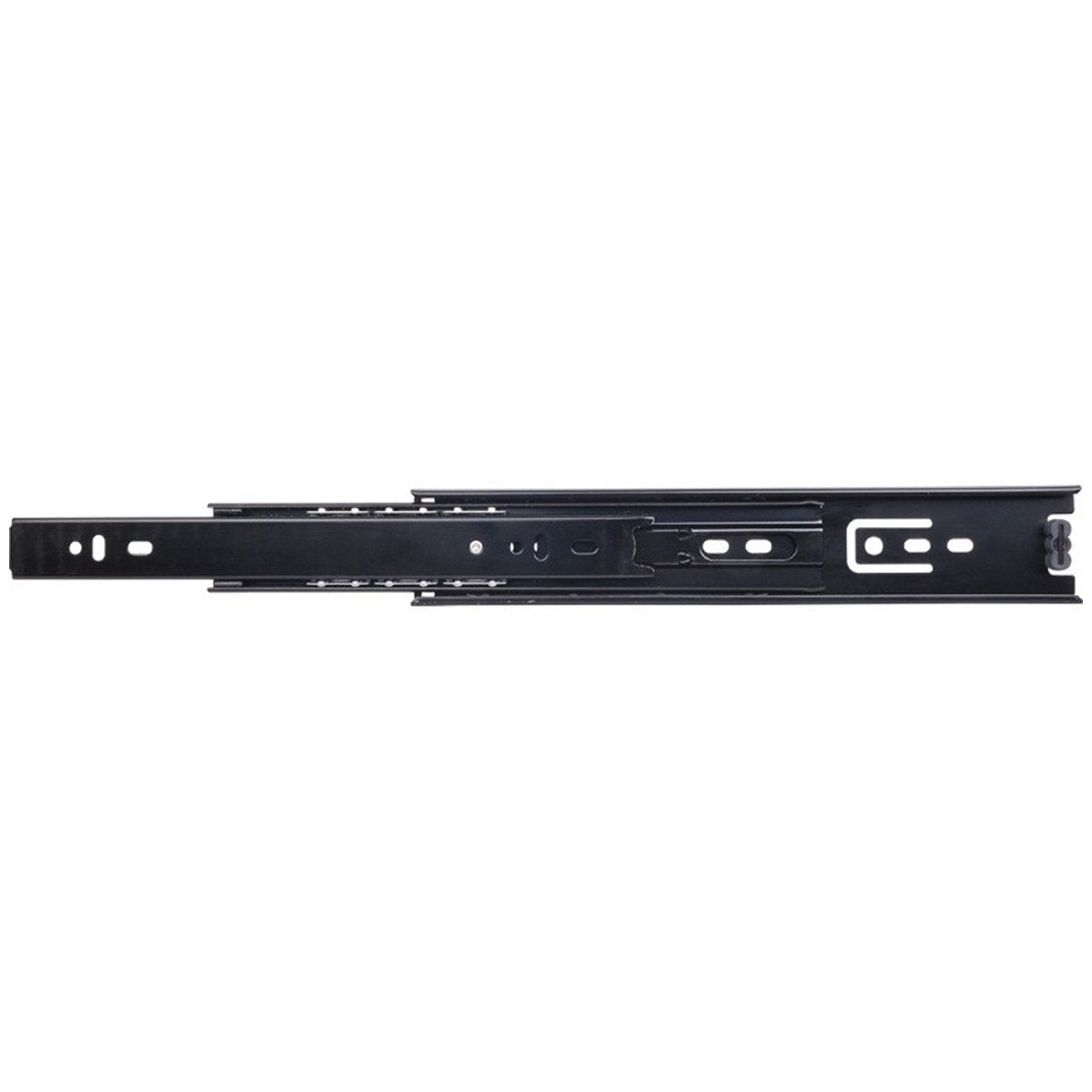

- Clear zinc electroplated or black finish
Product Details:
- Configurable Collection: Heavy Duty 100 lb Full Extension
- Extension: Full Extension
- Primary Material Details: Steel
- Country of Origin: China
- Certification: Grade 1 ANSI/BHMA Certified
- Ship Type: FedEx
- Warranty Period: Lifetime
Measurements:
- 10" (254 mm)L
- Dimensions: 10" (254 mm)L x 45 mmH
- Weight (lbs): 1.42
- 12" (305 mm)L
- Dimensions: 12" (305 mm)L x 45 mmH
- Weight (lbs): 1.71
- 14" (350mm)L
- Dimensions: 14" (350mm)L x 45mmH
- Weight (lbs): 1.98
- 16" (406 mm)L
- Dimensions: 16" (406 mm)L x 45 mmH
- Weight (lbs): 2.26
- 18" (457 mm)L
- Dimensions: 18" (457 mm)L x 45 mmH
- Weight (lbs): 2.53
- 20" (508 mm)L
- Dimensions: 20" (508 mm)L x 45 mmH
- Weight (lbs): 2.8
- 22" (559 mm)L
- Dimensions: 22" (559 mm)L x 45 mmH
- Weight (lbs): 3.07
- 24" (610 mm)L
- Dimensions: 24" (610 mm)L x 45 mmH
- Weight (lbs): 3.35
- 26" (660 mm)L
- Dimensions: 26" (660 mm)L x 45 mmH
- Weight (lbs): 3.83
- 28" (711 mm)L
- Dimensions: 28" (711 mm)L x 45 mmH
- Weight (lbs): 4.11
- Installation Instructions
- See our Blog
- In the Trade? | Wholesale Registration
