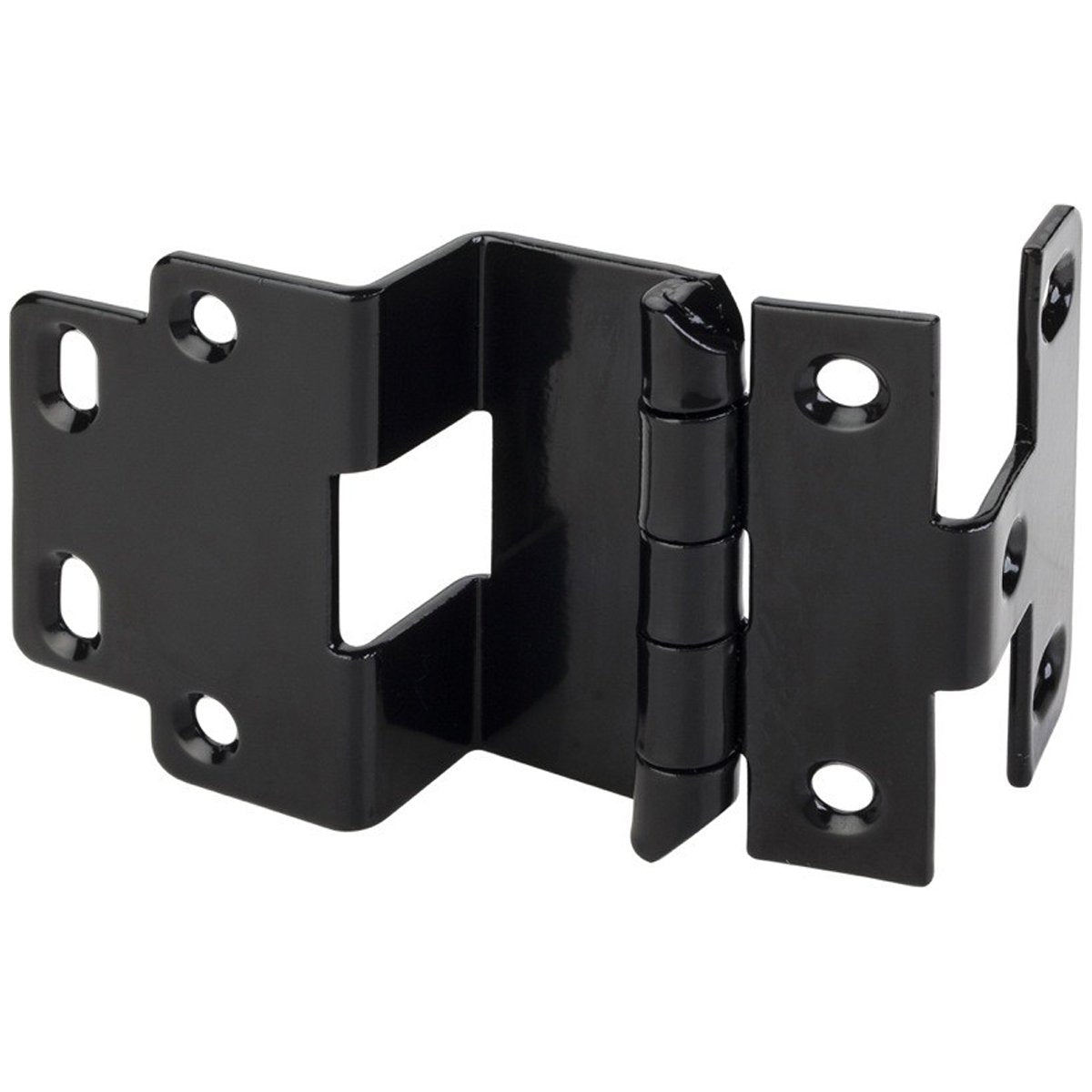

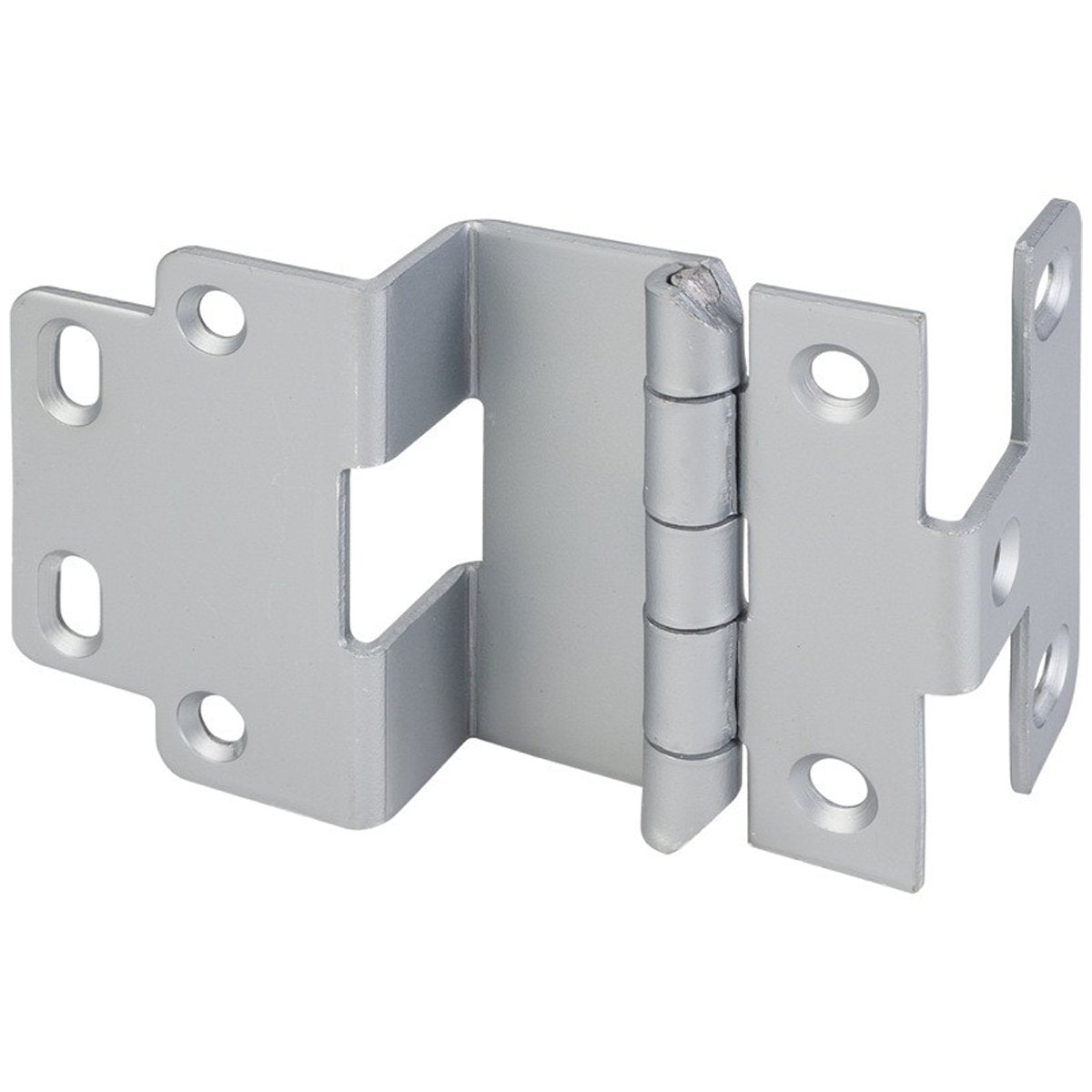

Hardware Resources Non-Mortise Institutional 5-Knuckle Cabinet Hinge
Hardware Resources Non-Mortise Institutional 5-Knuckle Cabinet Hinge
Hardware Resources
SKU:HR0076
Couldn't load pickup availability
Non-Mortise Institutional 5-Knuckle Cabinet Hinge. For use with 13/16" Door Thickness and 3/4" Panel Thickness.
- Details
- Specifications & Warranty
- Shipping & Returns
- Resources
- Shop Related
Benefits & Features:
- Conforms to ANSI/BHMA Grade 1 Requirements
- Hospital tips, 2-3/4" overall height
- Drilled knuckle inner diameter
- 32mm system hole pattern with 37mm setback
- Countersunk screw holes for recommended #8 flat head or Euro screws
- Slotted screw holes for vertical and horizontal adjustment
- Stainless steel #8 x 3/4" flathead screw available (8X347-2)
Product Details:
- Configurable Collection: Heavy Duty Institutional 5-Knuckle Cabinet Hinge
- Attachment Type: Screw-in
- With or without Screws: Without
- Primary Material Details: Steel
- Country of Origin: China
- Certification: ANSI/BHMA Grade 1
- Ship Type: FedEx
- Warranty Period: Lifetime
Hinge Overlay (in): 0.75
Weight (lbs): 0.39
- Installation Instructions
